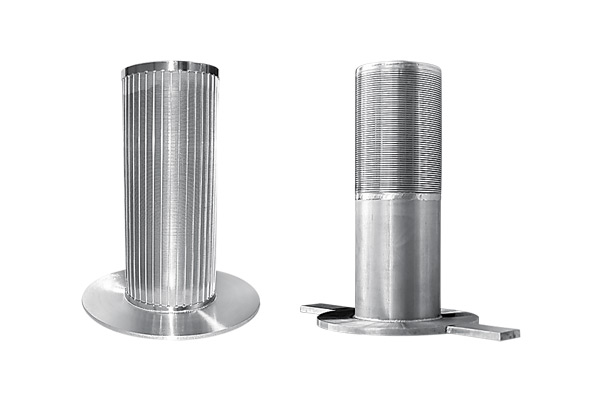

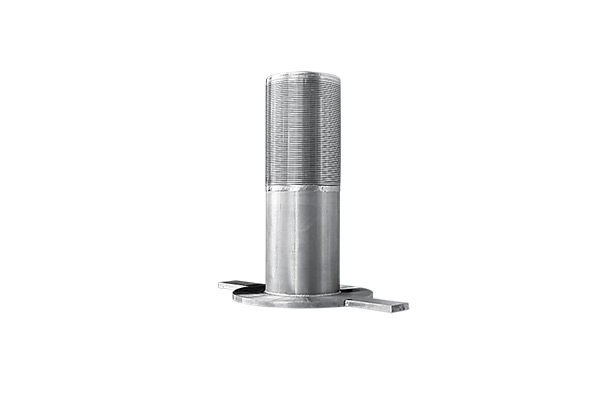

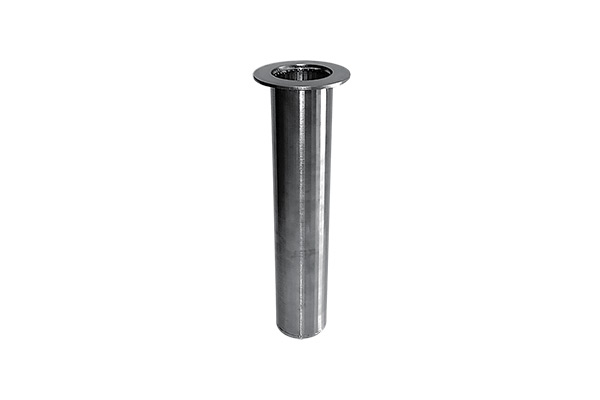

Resin Traps

Federal Screen’s filter solutions offer a complete range of resin trap styles to suit a wide range of applications. Resin Traps by design are placed in a housing utilizing the flow to capture media and preventing it from traveling downstream.


Specifications

Materials:
304/304L
316/ 316L
321
410S
Hastelloy C-276
Duplex
Super Duplex
Titanium
Alloy B3
Monel 400
Alloy 20
Wire Profiles
View Profiles
No.30
40
47
60
69
90
177
Q25
Q35
118
130
Slot Size range:
View Sizes
0.001” – 0.625”

Easy to maintain

Our resin traps provide a high percentage of open area which minimizes pressure loss through the system. Resin traps can be designed to suit either new or existing strainer bodies or piping. In many systems, a failure can allow media to escape from the main treatment vessel. The design incorporates a screen element which is easily removed for servicing.

Heavy duty

For heavier applications, (i.e. extreme line pressure) larger wedge wires can be used and length can be adjusted. Typical materials of construction would be type 304 or 316 stainless steel for the screen element and the housing, or for severe conditions, we suggest that a high nickel alloy such as C-276 be considered throughout.

Benefits of our resin traps include:

  • Continuous slot design provides increased open area. Minimal pressure-drop
  • Stronger and more durable
  • Prevents mass resin/media loss into piping distribution system
  • Wide range of profiled wire are available to suit most applications
  • Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
  • Surface filtration: the V-shaped surface wires allow easy cleaning by back flushing.
  • Less expensive than other screen of equal efficiency
  • Ensures against complete loss of media in the event of a failure
  • Great solution for protection against downstream pumping equipment

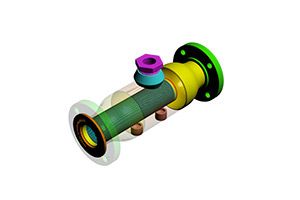

Download 3D PDF:
Resin Trap

Requires Adobe Acrobat for 3D functionality


Typical Industries for use



Product Quote

Once we receive your request we will contact you within 48 hours.

Resin Traps
Federal Screen’s filter solutions offer a complete range of resin trap styles to suit a wide range of applications. Resin Traps by design are placed in a housing utilizing the flow to capture media and preventing it from traveling downstream.


Can't find the resin trap you need?

We specialize in custom manufacturing. Our sales, engineering and production teams have the experience to manufacture what you need to the highest degree of excellence. Keeping all work in house allows us to offer accuracy and consistency. Federal Screen has the unique capabilities to build onto our manufacturing processes, reviewing, adjusting key parts of our manufacturing process catering to our work flow value and type.
