MEDIA RETENTION NOZZLES

One of our leading product line is our media retention nozzles which are manufactured in variety of designs  offering compatibility, dependability and performance resulting in a long service life.


Specifications

Type:
Standard
Economy
Toggle Bolt
Custom
Materials:
304/304L
316/ 316L
321
410S
Hastelloy C-276
Duplex
Super Duplex
Titanium
Alloy B3
Monel 400
Alloy 20
Wire Profiles
View Profiles
No.30
40
47
60
69
90
177
Q25
Q35
118
130
Slot Size range:
View Sizes
0.001” – 0.625”

About Media Retention nozzles

Typical nozzles are fabricated with a blind cap on one end and washer fixed with a threaded stem on the other end and can be secured with a nut and washer, usually installed in a vessel by an orifice plate.

These nozzles are manufactured to suit customer requirements and are not restricted by screen diameter, connection type, slot or length. Nozzles are used by most leading filtration manufacturers in common water treatment processes for activated carbon absorption, removal of suspended solids, sand, gravel or ion exchange.

Such nozzles are appropriate for these applications due to its economical, non-plugging, high open area, and corrosion resistant design.

Benefits of our nozzle’s design include:

  • Continuous slot design provides increased open area for better collection.
  • Stronger and more durable
  • Wide range of profile wires are available to suit most applications
  • Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot which minimizes clogging
  • High-precision slot sizes slot sizes are available to meet customer's requirements
  • Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing
  • Low pressure-drop

Download 3D PDF:
Toggle Bolt Media Retention Nozzle

Requires Adobe Acrobat for 3D functionality


Typical Industries for use



Product Quote

Once we receive your request we will contact you within 48 hours.

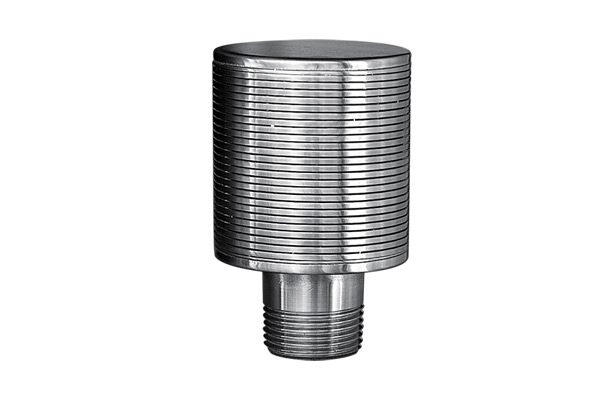

Standard nozzles
Structurally strong due to their welded fabrication. Available in male or female connection configuration, these nozzles are ideal media retention devices used in flat bottom, false bottom, or reverse suspended round bottom tanks. Wedge wire screen nozzles maximize open area flow while maintaining a low profile, compact ease of installation, and long screen service life.


Economy nozzles
Ideal media retention devices used in flat bottom, false bottom, or reverse suspended round bottom tanks. Wedge wire screen nozzles maximize open area flow while maintaining a low profile, ease of installation, and long service life.


Nozzle Assemblies

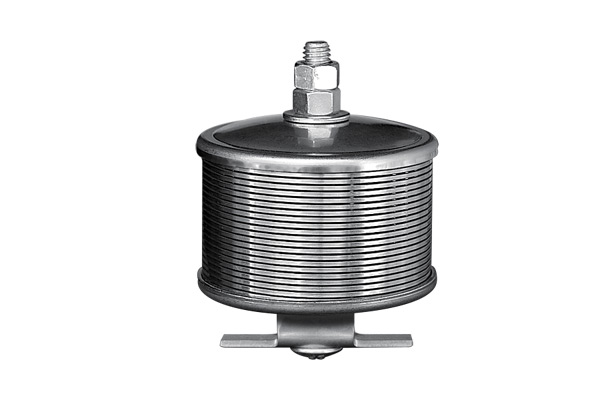

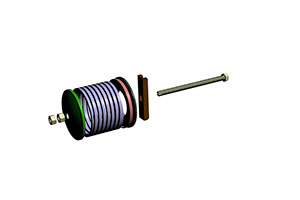

Toggle bolt design
are designed for ease and simplified installation. A bolt and toggle with end caps enable the installer / assembler to install the wedge wire screen nozzle where access is only available from one side. Male or Female Nozzle are ideal media retention devices used in flat bottom, false bottom, or reverse suspended round bottom tanks. Wedge wire screen nozzles maximize open area flow while maintaining a low profile, compact ease of installation; maximize distribution and long screen service life.

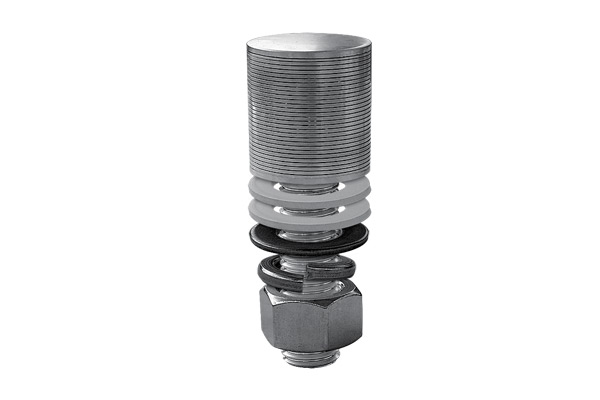

Custom Nozzles
A with a variety of connections such as (Pipe Threads, BSP connections, Pipe, Flange, Fine Machined threads). Primarily these wedge wire nozzles demonstrate our ability to satisfy, meet or exceed customer design specifications and fabricated to a variety of customer special requirements. Our wedge wire can be provided in a variety of sizes, diameters, and lengths to suite.



Can't find the Media Retention Nozzle you need?

We specialize in custom manufacturing.  Our sales, engineering and production teams have the experience to manufacture what you need to the highest degree of excellence. Keeping all work in house allows us to offer accuracy and consistency. Federal Screen has the unique capabilities to build onto our manufacturing processes, reviewing, adjusting key parts of our manufacturing process catering to our work flow value and type.
